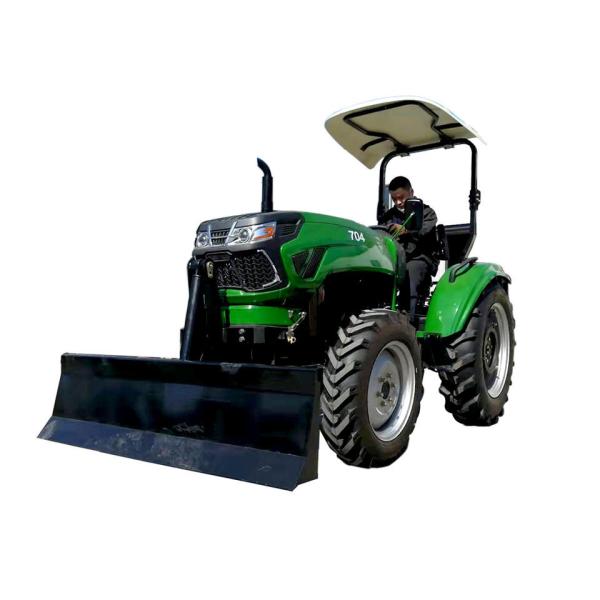

    70HP Front Loader Trailer Four Wheel Tractor With Agricultural Machinery Parts

    Ask Lasest Price
    Brand Name : RACEBOW
    Model Number : MT-QL-704
    Certification : CE SGS TUV
    Price : USD 4500-USD28000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 Unit per Month
    Delivery Time : 5-15 working days
    • Product Details
    • Company Profile

    70HP Front Loader Trailer Four Wheel Tractor With Agricultural Machinery Parts

    Agricultural Farm Tractor 70HP 4wd 4x4 Four Wheel Front Loader Trailer With Agricultural Machinery Parts

    70HP tractor

    TE series farm tractor

    1. TE series tractor is designed for multiple light works, such as farming, transportation etc.
    2. Equipped with Chinese famous diesel engine, It has the advantage of high cost efficiency
    and fuel efficiency, low maintenance cost and good working performance.
    3. Using central console and mature structure, the tractor is easy to control and maintain.
    4. 8F+2R gearbox with easy operation and convenient maintenance;
    5. Optional single/double action clutches for different needs and operation; Optional
    Herringbone tires, paddy tires or other type of tires to meet your needs of working conditions.
    6. Hydraulic power steering( 4WD) makes it easy to control and reduce the labor strength of operator.

    Product Parameter
    Model
    704E
    704B
    Machine parameters
    Type
    4×4
    4×4
    Rated Traction( KN)
    12
    17
    PTO Max Power (KW)
    43.8
    50
    Dimensions(mm)
    3560×1650×2450
    3750×1820×2670
    Wheelbase(mm)
    1965
    2050
    Track(mm)
    Front wheel(mm)
    1150
    1280
    Rear wheel(mm)
    1200-1360
    1100-1390
    Ground clearance(mm)
    Minimum ground clearance(mm)
    330
    330
    Minimum turning cricle radius
    Use unilateral braking
    2.85±0.20
    3.8±0.30
    Not unilateral braking
    3.15±0.30
    4.3±0.30
    Minimum use quality
    1880
    2950
    Gearbox
    8F+8R Shuttle Shift
    12F+12R Shuttle Shift
    Steering System
    Hydraulic steering gear
    Drive Train
    Clutch
    Dual stage clutch
    Double acting clutch
    Working equipment
    Maximum lifting force at 610mm(KN)
    10.85
    ≥14.2
    Suspension mechanism
    Three-piont suspension type 1 or 2
    Three-piont suspension type 1
    PTO shaft
    PTO Spedd(r/min)
    540/760(option: 540/1000)
    540/760(option: 540/1000)
    Tire
    Front wheel specifications
    6.5-16/7.5-16/7.5-20
    8.3-20/8.3-24/9.5-24
    Rear wheel specifications
    11.2-24/12.4-24/12.4-28
    12.4-28/11-32/14.9-30
    Engine
    Type
    Inline, 4 stroke, Water cooled
    Inline, 4 stroke, Water cooled
    Cylinder
    4
    4
    Optional
    Cabin
    AC/Heater
    Roll bar

    Canopy

    Perfusion volume
    Radiater(L)
    15
    12
    Fuel tank(L)
    50
    64
    Engine oil pan(L)
    5
    7
    Driveline oil (L)
    20
    28
    Lifter(L)
    9.5
    11
    Hydraulic steering oil (L)
    0.7
    0.8
    Steering system oil (L)
    15
    20
    This parameter table is for reference only, everything is based on actual products

    70HP Front Loader Trailer Four Wheel Tractor With Agricultural Machinery Parts


    1. who are we?
    We are based in Hubei, China, start from 2016,sell to Domestic Market(30.00%),

    Africa(25.00%),Southeast Asia(18.00%),South America(15.00%),South Asia(7.00%),

    Mid East(5.00%). There are total about 201-300 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Tractors,Tricycle,Truck,Farming Implements

    4. why should you buy from us not from other suppliers?
    We are professional manufacture.Our company now has over 600 employees, over 600 modern production equipment and multiple production lines, involving final assembly, electrophoretic painting, rear axle, carriage molding, welding, casting, machining, etc.

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW;
    Accepted Payment Currency:USD;
    Accepted Payment Type: T/T,L/C;
